PTFE Composite Hose: Versatile Fluid Transfer Solution

PTFE composite hose features a robust construction comprising a PTFE liner, inner and outer helix , liner fabrics and films and cover. Engineered for the suction and discharge of aggressive chemicals and solvents, it offers superior durability and performance, setting a new standard in fluid transfer efficiency and reliability.

PTFE composite hose

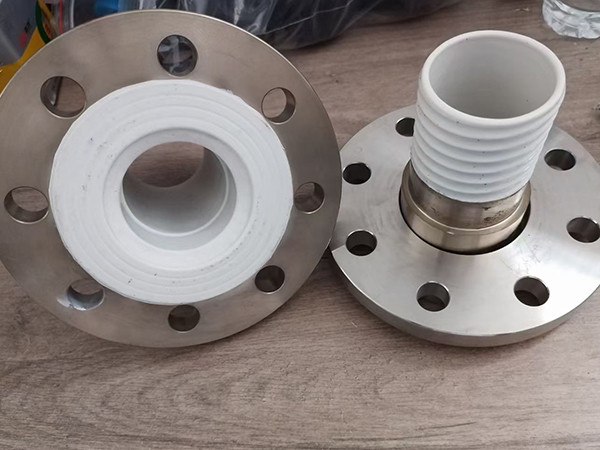

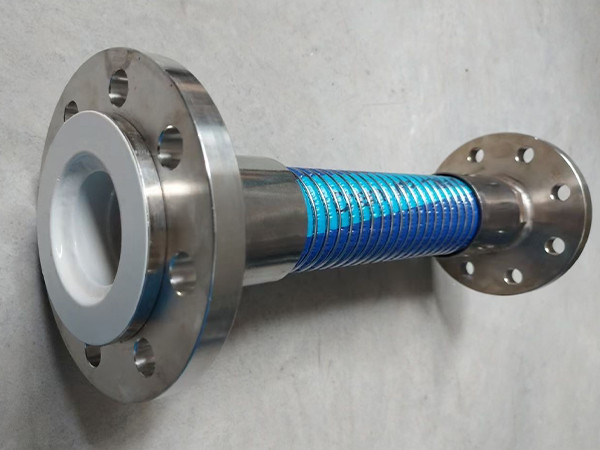

PTFE composite hose flange

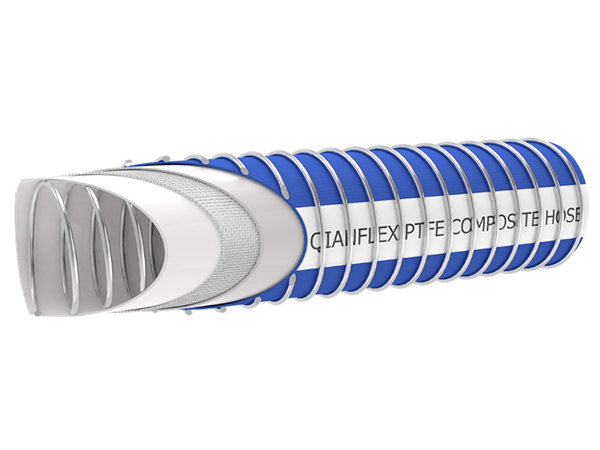

Structure diagram of PTFE composite hose

PTFE composite hose construction

Construction

Inner Lining: PTFE film plus multiple plies of polypropylene film.
Inner Wire: Stainless Steel 316L.
Outer Wire: High tensile galvanized steel or Stainless Steel 304 or 316 L.
Cover: Polypropylene fabrics and films with an abrasion resistant PVC coated fabric cover.
Liner: Combination of multiple piles of polypropylene films and polyester vapour barriers.
Temperature Range: -30 °C to +120 °C
Safety Factor: 3 : 1

Table 1: PTFE Chemical Composite Hose Specification
Hose Code	I.D.		O.D.	WP	Bend Radius	Weight	Length
Hose Code	mm	inch	mm	bar	mm	kg/m	m
PTFE-CH-01	25	1	31	20	152	0.8	20
PTFE-CH-02	38	1-1/2	46	20	250	1.2	20
PTFE-CH-03	51	2	61	20	296	1.9	20
PTFE-CH-04	63	2-1/2	73	20	360	2.5	20
PTFE-CH-05	76	3	87	20	435	3	20
PTFE-CH-06	102	4	115	15	589	4.5	20
PTFE-CH-07	152	6	171	15	862	5.2	20
PTFE-CH-08	203	8	229	15	1101	6.5	20
PTFE-CH-09	254	10	280	15	1200	7.3	20

End Fitting

Various fittings, such as threaded or unthreaded swage nipples, flanges and a wide range of quick couplings. End fittings are crimped into the hose.

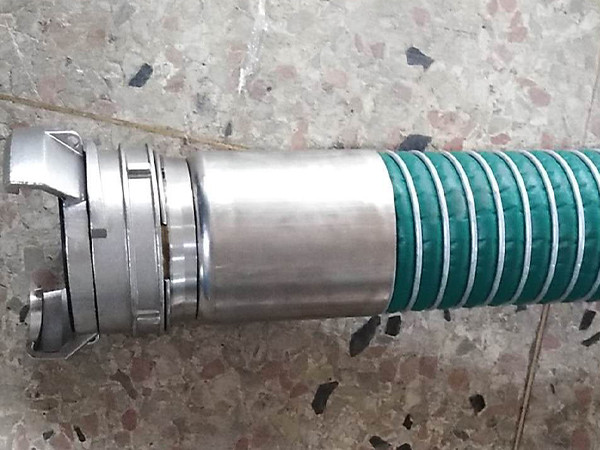

Tank Coupling

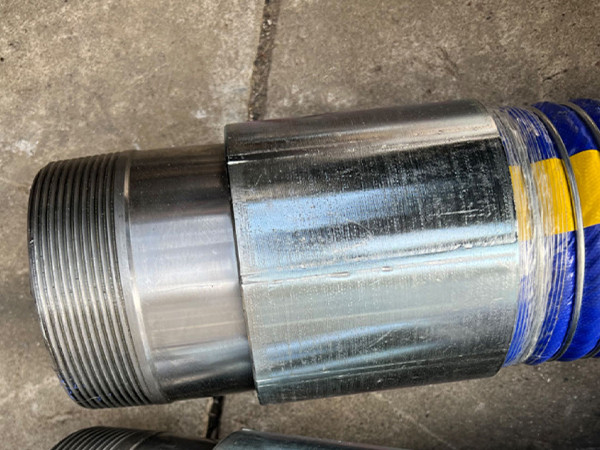

NPT Male

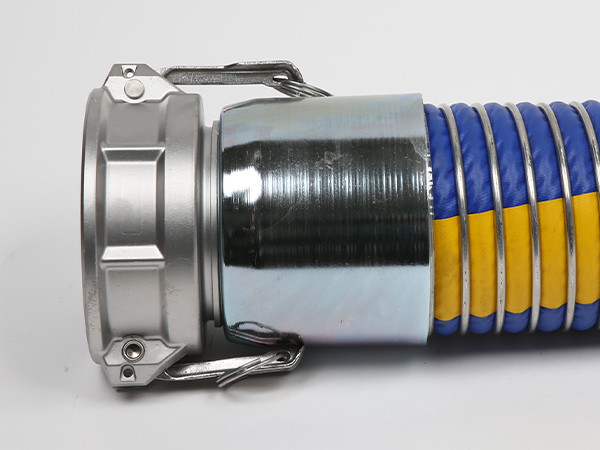

Camlock Coupling

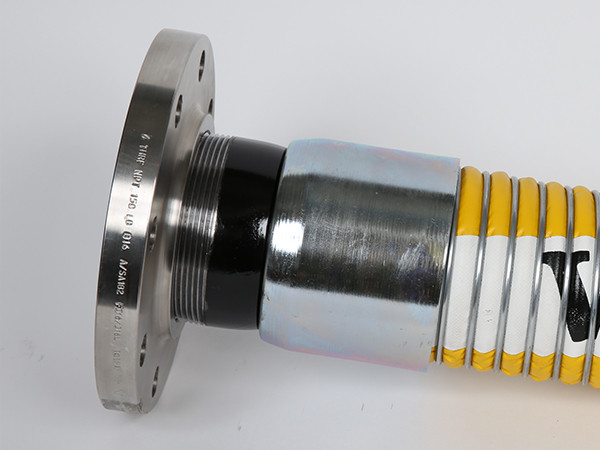

Flange

Packing and Delivery

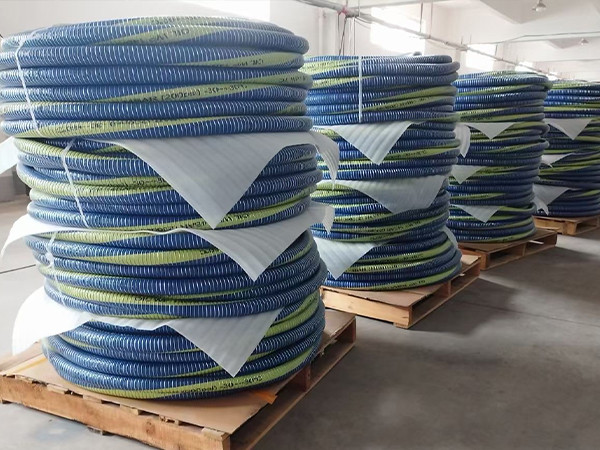

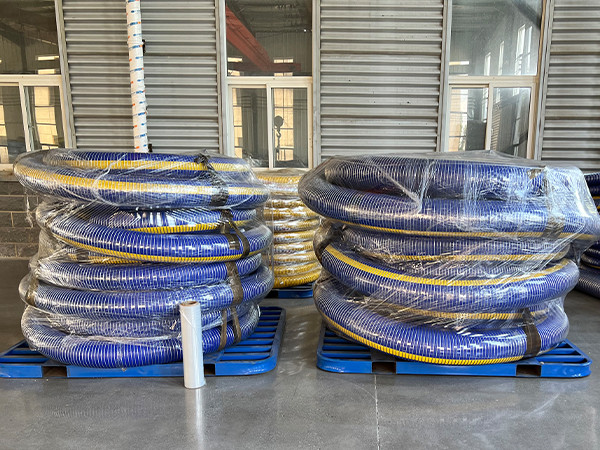

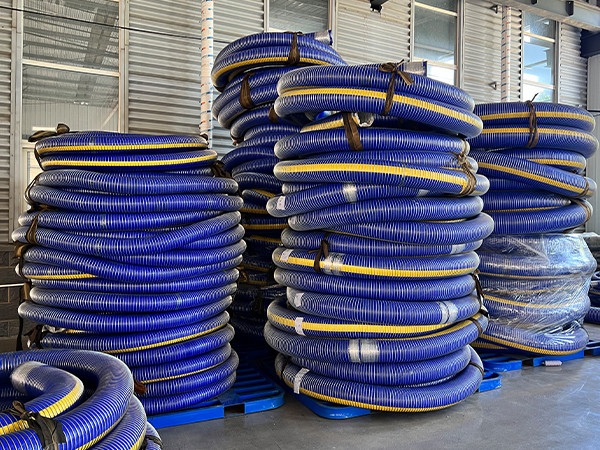

As usual, we pack with plastic film first, then pack with pallets or wooden boxes for LCL shipments. For FCL shipments, we pack with bubble wrap film to protect the hose.

Finished

Sealed

Awaiting Packaging

Application

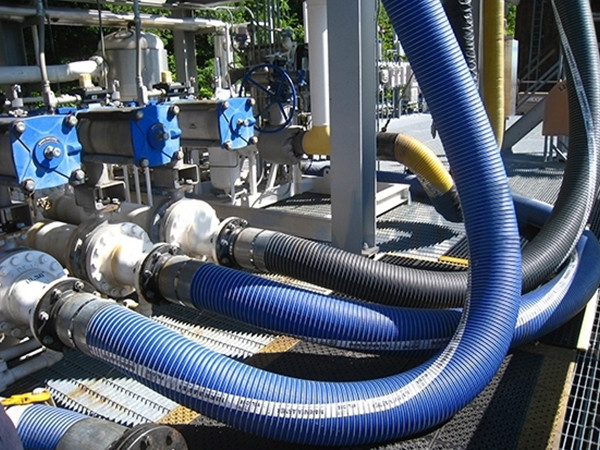

Chemical processing plant

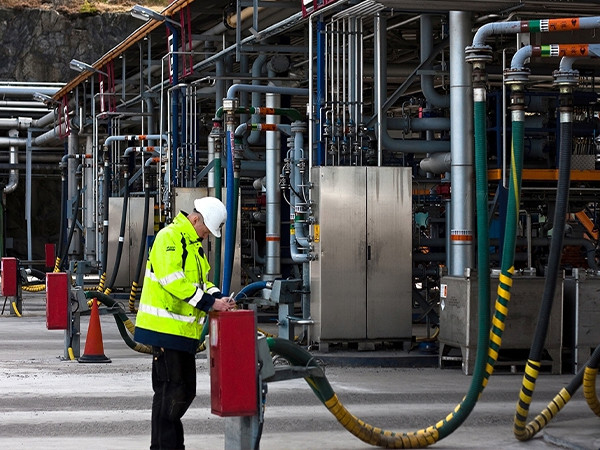

Workers inspecting pipelines in a factory filled with pipes.

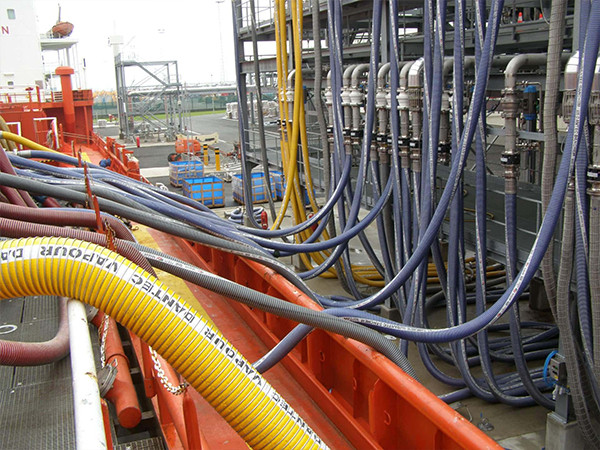

Oil and gas operations

PTFE composite hoses installed in an automotive repair shop.

Automotive maintenance and repair shop
